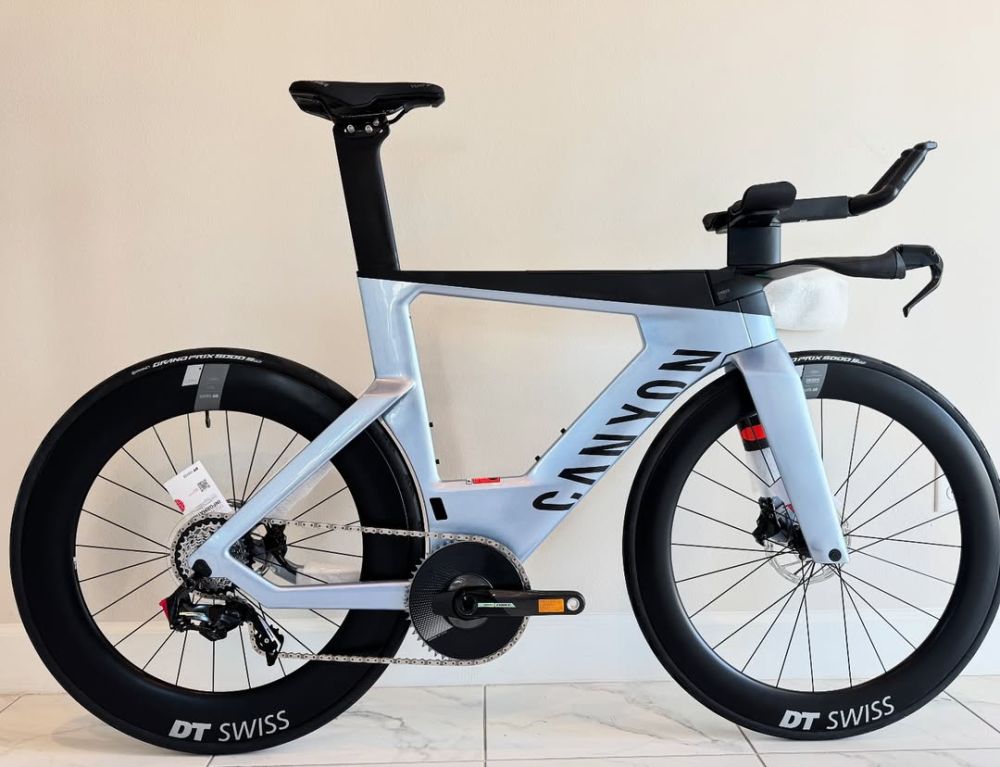

2025 Canyon Speedmax CF SLX 8 AXS

Frame

Canyon Speedmax CF SLX Disc, All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Axle dimension: 12x142 mm, Tyre clearance: 30 mm, Material: Carbon (CF), Weight: 3.75 lbs

BB Standard: BB86/BB92, 86mm, Press Fit

Tire Clearance: 30c

Color: Arctic Grey

Fork

Canyon FK0080 CF Disc, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Tyre clearance: 30 mm, Material: Carbon (CF), Weight: 1.48 lbs

Bottom Bracket

SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 0.15 lbs

Handlebar

Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.

Saddle

Selle Italia Watt Superflow, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 0.55 lbs

Seatpost

Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Material: Carbon (CF), Weight: 0.34 lbs

Type: Rigid

Pedals

None included

Groupset

Rear Derailleur

SRAM Force AXS RD 12s, Weight: 0.67 lbs

Crank

SRAM Force AXS Power Meter, Number of chainrings: 1

Power Meter

SRAM Force AXS Power Meter, Number of chainrings: 1

Shifters

SL SRAM BLIP AXS WLS MOUNT TAPE, Weight: 1.15 lbs

Cassette

SRAM Force XG-1270 12s 10-33T, Number of sprockets: 12, Range: 10-33

Chain

SRAM Force D1 12s

Brakes

SRAM S-900 Aero HRD, Weight: 0.62 lbs | SRAM S-900 Aero HRD, Weight: 0.60 lbs

Type: SRAM Hydraulic Disc

Brake Levers

SRAM S-900 Aero HRD, Weight: 0.62 lbs | SRAM S-900 Aero HRD, Weight: 0.60 lbs

Wheels

Rims

Front: DT Swiss ARC 1400 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.76 lbs, Rear: DT Swiss ARC 1400 Dicut, XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 80 mm, Rim material: Carbon, Weight: 2.19 lbs

Tires

Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 0.65 lbs | Continental Aero 111, Width: 26 mm, Weight: 0.54 lbs

Disc Rotors

SRAM Paceline, Size: 160 mm, Weight: 0.35 lbs
